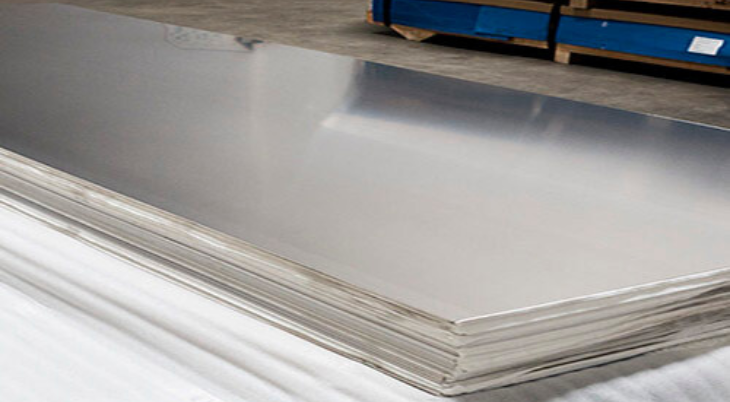

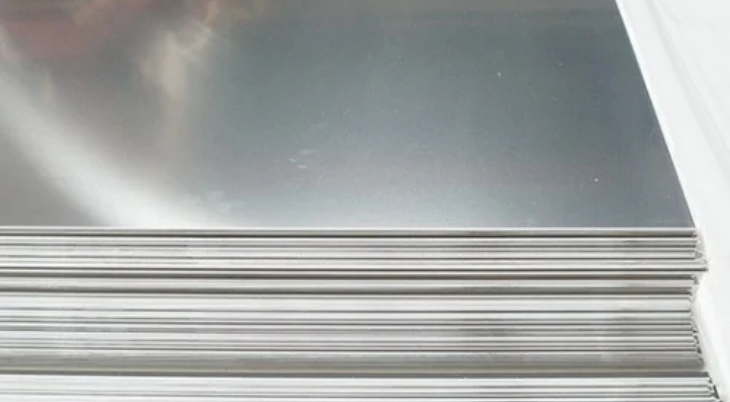

Alloy 2124 aluminum plates are a high purity form of 2024 and are normally
supplied in 1.50" - 6.00" plate. Available in T851 temper, this plate alloy exhibits good
strength retention and creep resistance at elevated temperatures up to 350 degrees. Fracture
toughness levels of 2124-T851 plate are significantly higher than 2024-T851. This alloy is
recommended for those applications requiring better short-transverse ductility, high strength
and good machinability and has excellent exfoliation corrosion resistance. Fatigue properties of
alloy 2124-T851 are similar to those of 2024-T851.
Applications
• Machined fuselage bulkheads
• Wing skins in high-performance military aircraft
Technical Data Sheet
| Silicon |
0.20 |
| Iron |
0.30 |
| Copper |
3.8-4.9 |
| Manganese |
030.-0.9 |
| Magnesium |
1.2-1.8 |
| Chromium |
0.10 |
| Zinc |
0.25 |
| Titanium |
0.15 |
| Others, each |
0.05 |
| Others, total |
0.15 |
| Balance, Aluminum |
|
Typical Mechanical Properties
| Thickness |
Tensile Strength |
Yield Strength |
Elongation |
| In. |
KSI |
KSI |
% |
| 1.001-2.00 |
66 |
57 |
5 |
| 5.001-6.00 |
63 |
54 |
4 |
