Choudhary Metals is a trusted importer, exporter, and supplier of premium non-ferrous and ferrous metals, serving diverse industries worldwide. With a strong focus on quality and reliability, we deliver copper, brass, aluminium, bronze, and other metals in various forms to meet every industrial need.

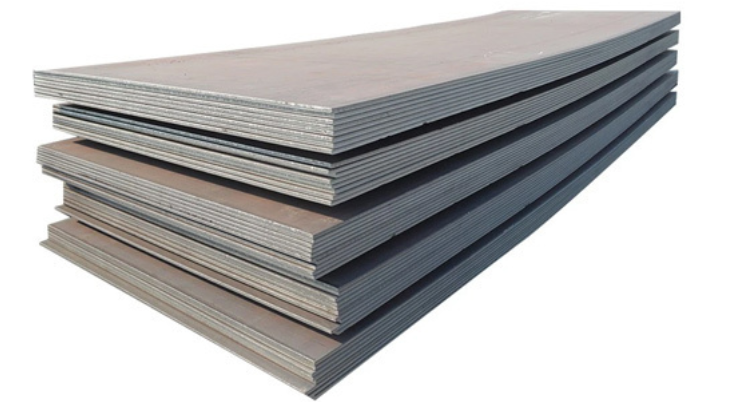

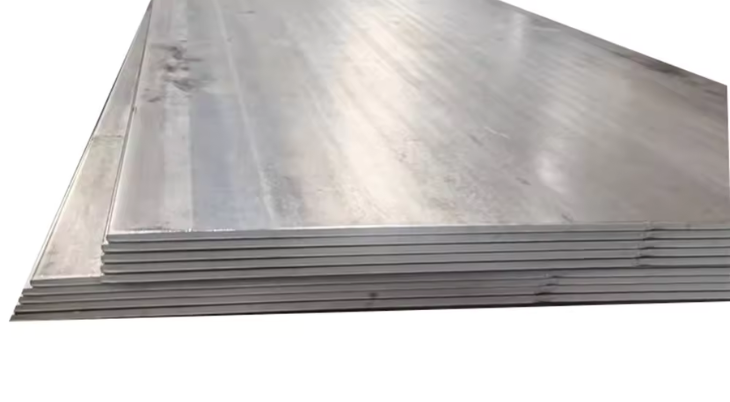

Choudhary Metal is a trusted Supplier and Exporter of Military, Armor & Ballistic Steel Plates in Mumbai, India. We offer high-performance Armor® 500 / 500T Steel Plates known for their exceptional hardness and outstanding toughness properties. These plates are specially engineered to provide maximum protection in demanding environments.
Armor® 500 / 500T is one of the world’s toughest protection steel plates, featuring a nominal hardness of 500 HBW. Due to its superior strength and resistance to impact, it is widely used in military vehicles, armored vehicles, defense structures, security equipment, and protective buildings.
At Choudhary Metal, we supply high-quality Ballistic and Armor Steel Plates that meet international standards and are suitable for various defense, security, and high-impact industrial applications. Our plates are known for their excellent durability, high resistance to ballistic threats, and long service life.
It offers vehicle designers new ways to increase protection using lighter weight designs. Armor 500T is not intended for further heat treatment.
| USED FOR | DIMENSIONS | STANDARDS |
| Armored | T: 3 - 80 mm | EN 10029 |
| Thickness(mm) | Hardness(HBW) | Charpy-V1), 10x10 mm test specimen2)Min. | Yield Strength Rp0.2(min MPa) | Tensile Strength Rm(MPa) | Elongation A5(min %) | Elongation A50(min %) |
| 3.0 - 80.0 | 480 - 540 | 32 J / -400C | 1250 | 1450 - 1750 | 8 | 10 |
| C *)(max %) | Si *)(max %) | Mn *)(max %) | P(max %) | S(max %) | Cr 1)(max %) | Ni 1)(max %) | Mo *)(max %) | B *)(max %) |
| 0.32 | 0.4 | 1.2 | 0.01 | 0.003 | 1 | 1.8 | 0.7 | 0.005 |
| Thickness(mm) | Tolerances(mm) |
| 3.0 - 12.9 | - 0.0 / + 0.6 |
| 13.0 - 20.0 | - 0.0 / + 0.8 |
| 20.1 - 40.0 | - 0.0 / + 1.0 |
| 40.0 - 59.9 | - 0.0 / + 1.4 |
| 60.0 - 80.0 | - 0.0 / + 1.6 |
