Choudhary Metals is a trusted importer, exporter, and supplier of premium non-ferrous and ferrous metals, serving diverse industries worldwide. With a strong focus on quality and reliability, we deliver copper, brass, aluminium, bronze, and other metals in various forms to meet every industrial need.
Choudhary Metal is a reliable Supplier and Exporter of Military, Armor & Ballistic Steel Plates in Mumbai, India. We provide premium quality Armor™ 500 Ballistic Protection Steel Plates designed for applications that require high hardness and superior protection.
Armor™ 500 is a ballistic protection steel with high hardness, offering excellent resistance against impact and ballistic threats. It is available in thicknesses ranging from 2 mm to 30 mm with a hardness range of 490 – 560 HBW, making it suitable for demanding military, defense, and security applications.

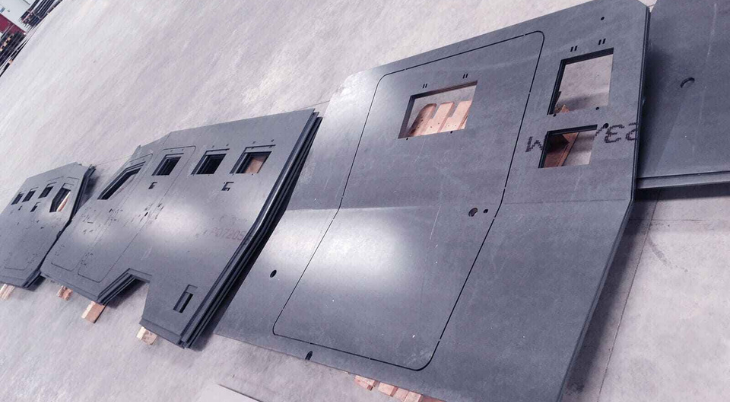

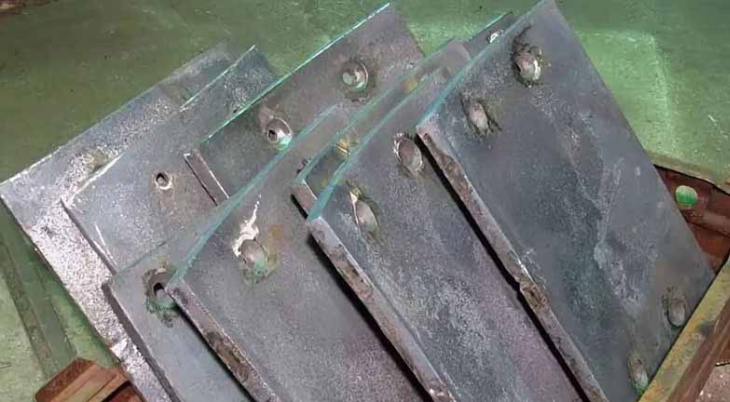

Armor 500 Steel is supplied as cut-to-length sheets in thicknesses of 2 mm to 6.5 mm and as steel plates in thicknesses of 6 mm to 30 mm. These plates are delivered in a quenched condition to ensure maximum strength and durability, and they are not intended for further heat treatment.
At Choudhary Metal, our Armor 500 Ballistic Steel Plates are widely used in armored vehicles, military equipment, defense structures, security vehicles, and protective systems where reliable ballistic protection and long service life are essential.
| USED FOR | DIMENSIONS | STANDARDS |
| Armored | T: 2 - 30 mm | EN 10029, EN 10051 |
| Thickness(mm) | Hardness(HBW) |
| 2.0 - 30 | 490 - 560 |
| C (max %) | Si (max %) | Mn (max %) | P(max %) | S(max %) | Cr (max %) | Ni (max %) | Mo (max %) | B (max %) |
| 0.35 | 0.70 | 1.50 | 0.015 | 0.010 | 1.0 | 2.0 | 0.70 | 0.005 |
| Product Type | Thickness(mm) | Tolerance (Min / Max) |
| Cut Length | 2.00 - 4.00 | - 0.0 / + 0.36 |
| Cut Length | 4.01 - 5.00 | - 0.0 / + 0.40 |
| Cut Length | 5.01 - 6.00 | - 0.0 / + 0.42 |
| Cut Length | 6.01 - 6.50 | - 0.0 / + 0.44 |
| Heavy Plate | 6.0 - 7.9 | - 0.0 / + 0.8 |
| Heavy Plate | 8.0 - 14.9 | - 0.0 / + 1.0 |
| Heavy Plate | 15.0 - 24.9 | - 0.0 / + 1.2 |
| Heavy Plate | 25.5 - 30.0 | - 0.0 / + 1.4 |
| Product Type | Thickness(mm) | 1000 ruler(mm) |
| Cut Length | 2.00 - 4.00 | 6 |
| Cut Length | 4.01 - 5.00 | 6 |
| Cut Length | 5.01 - 6.00 | 6 |
| Cut Length | 6.01 - 6.50 | 6 |
| Heavy Plate | 6.0 - 7.9 | 6 |
| Heavy Plate | 8.0 - 14.9 | 6 |
| Heavy Plate | 15.0 - 24.9 | 6 |
| Heavy Plate | 25.5 - 30.0 | 6 |
