WELDOX 700E Plates

  • Home
  • WELDOX 700E Plates

High Tensile Plates

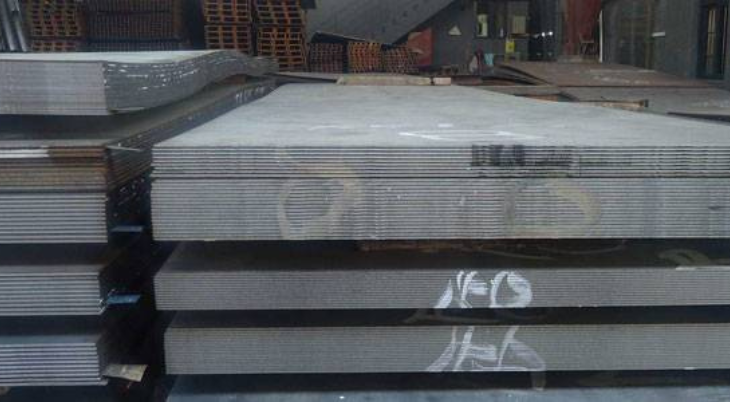

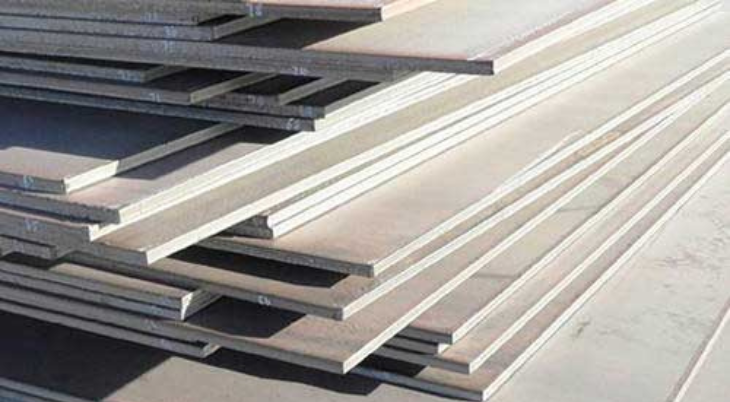

Steel Plates Steel Plates

WELDOX 700E Plates


Choudhary Metal is a trusted supplier and exporter of High Strength WELDOX 700E Plates in Mumbai, India. We specialize in providing high tensile structural steel plates for industries where superior strength, durability, and performance are essential. Our focus is on supplying premium quality high strength steel plates to customers who require reliable materials for demanding engineering and structural applications.

At Choudhary Metal, we understand that many industrial projects require high strength steel plates capable of performing under extreme working conditions. For such applications, inferior materials cannot be used, which is why we ensure only top quality WELDOX 700E Plates are supplied to our customers.

WELDOX 700 is a high strength structural steel with a minimum yield strength of 650 – 700 MPa depending on the thickness. This grade complies with the requirements of EN 10025 for the corresponding grades and thicknesses. Due to its excellent strength-to-weight ratio, it is widely used in demanding load-bearing structures and heavy engineering applications.

WELDOX 700E Plates are available in plate thicknesses ranging from 4 mm to 160 mm, while WELDOX 700F Plates are available in thicknesses from 4 mm to 130 mm. These plates are supplied in widths up to 3350 mm and lengths up to 14630 mm. For plates with thickness above 100 mm, the preferred width is 1650 mm with untrimmed edges.

These high strength plates are commonly used in cranes, heavy machinery, construction equipment, bridges, structural frameworks, mining equipment, and industrial load-bearing structures.

Choudhary Metal ensures consistent quality, competitive pricing, and timely delivery of WELDOX 700E Plates to customers across India and international markets.


MECHANICAL PROPERTIES

For transverse test pieces according to EN 10025
Thickness mm Yield strength 1) Rp 0.2, min MPa Tensile strength 1) Rm MPa Elongation A5 min % Typical hardness HBW
4 - 53 700 780 - 930 14 260 - 310
(53) - 100 650 780 - 930 14 260 - 310
(100) - 160 650 710 - 900 14 240 - 290
Impact properties E -400C F -600C
Min. impact energy (J) for transverse tests Charpy V 10x10 mm tests specimens 2) 69 J 27 J
Meet the requirements for S 690 QL S 690 QL1
Unless otherwise agreed, transverse impact testing according to EN 10025-6 option 30 will apply. For thicknesses between 6 - 11.9 mm, sub-size Charpy V-specimens are used. The specifi ed minimum value is then proportional to the cross-sectional area of the specimen compared to a full-size specimen (10 x 10 mm)

CHEMICAL COMPOSITION (HEAT ANALYSIS)

Minimum values
C *) Max % Si *) Max % Mn *) Max % P Max % S Max % Cr *) Max % Cu *) Max % Ni *) Max % Mo *) Max % B *) Max %
0.20 0.60 1.60 0.020 0.010 0.70 0.30 2.0 0.70 0.005

MAXIMUM CARBON EQUIVALENT CET (CEV)

Thickness mm - 5 (5 )- (10) 10- (20) 20 - (40) 40 - (80) 80 - (100) 100 - 160
Weldox 700E: CET (CEV) 0.34 (0.48) 0.31 (0.48) 0.31 (0.48) 0.36 (0.52) 0.39 (0.58) 0.39 (0.58) 0.41 (0.67)
Weldox 700F: CET (CEV) 0.38 (0.57) 0.38 (0.57) 0.38 (0.57) 0.38 (0.57) 0.39 (0.58) 0.39 (0.58) 0.41 (0.67)
