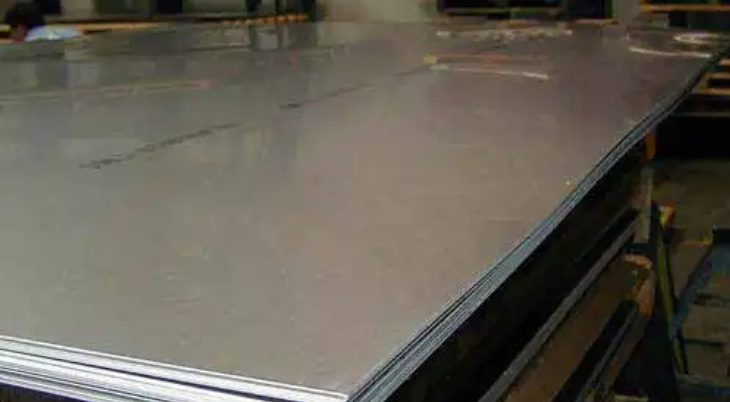

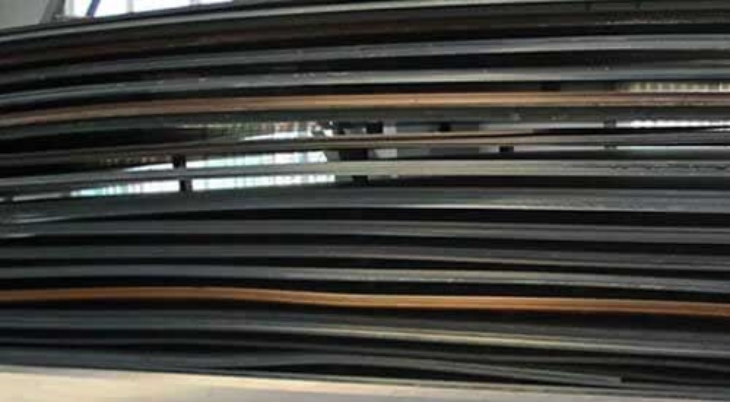

JFE 780 LE Plates


Choudhary Metal is a trusted supplier and exporter of High Strength JFE 780 LE Plates in Mumbai, India. JFE 780 LE Plates are low-alloy high-strength steel plates manufactured through TMCP (Thermo-Mechanical Controlled Process) or by the quenched and tempered process. These plates provide exceptional strength and durability, which helps in reducing the overall weight of welded structures while maintaining superior performance.

Excellent Weldability
JFE 780 LE Plates supplied by Choudhary Metal are produced with controlled chemical composition that ensures a low carbon equivalent and outstanding weldability. These plates are ideal for applications where reliable welding performance is essential.

High Notch Toughness
These plates offer excellent notch toughness due to carefully controlled chemical composition and advanced heat treatment processes. The superior toughness ensures structural reliability and resistance against brittle fracture in demanding industrial applications.

Uniform Quality and Smooth Surface Finish
Manufactured under strict quality control on advanced plate mills, JFE 780 LE Plates provide excellent uniformity in mechanical properties, flatness, and surface finish. The slabs are carefully processed, and modern rolling techniques are used to ensure a smooth and clean surface.

Good Workability
With excellent ductility and formability, JFE 780 LE Plates offer good machinability, making them easy to drill, cut, and fabricate for various structural and industrial applications.

Wide Range of Sizes
Choudhary Metal supplies JFE 780 LE Plates in a wide range of sizes, with widths up to 5,350 mm and lengths up to 27,000 mm. This wide availability helps customers reduce fabrication costs and improve efficiency in large structural projects.

Choudhary Metal ensures high quality products, competitive pricing, and timely delivery to meet the requirements of clients across India and international markets.

JFE'S HIGH TENSILE STRENGTH STEEL PLATE PRODUCTS SPECIFIED BY TYPICAL STANDARDS

Type of Steel JIS ASTM EN WES ** Ship's class
Standard *** 		JFE Standard
Steel
Plates
for
Structural Use 		590N/mm2 Class G 3106 SM570* A678 Gr.0
Gr.D
A841		   HW 450
HW 450CF		 A47
D47
E47
F47 		JFE-HITEN570U2
JFE-HITEN570E
JFE-HITEN590S
JFE-HITEN590SL
JFE-HITEN590AZ
JFE-HITEN590
JFE-HITEN590U2
JFE-HITEN590E
      HW 490
HW 490CF		 A51
D51
E51
F51 		JFE-HITEN610
JFE-HITEN610U2
JFE-HITEN610E
690N/mm2 Class       HW 550
HW 620		 A56
D56
E56
A63, 63N
D63, 63N
E63		 JFE-HITEN690S
JFE-HITEN690
JFE-HITEN690M
JFE-HITEN710
JFE-HITEN710M
780N/mm2 Class G 3128
SHY685
SHY685N
SHY685NS		 A514
A709 Gr.100		   HW 685 A70, 70N
D70, 70N
E70, 70N
F70, 70N		 JFE-HITEN780EX
JFE-HITEN780S
JFE-HITEN780LE
JFE-HITEN780M
980N/mm2 Class       HW 885   JFE-HITEN980S
JFE-HITEN980
Steel
Plates for Pressure Vessels 		590N/mm2 Class G 3115 SPV450
G 3124 SEV345		 A537 Cl. 2
A738 Gr.B
A841 		EN10028
P460N		 HW 450 KPV46 JFE-HITEN570U2
JFE-HITEN570E
JFE-HITEN590
JFE-HITEN590U2
JFE-HITEN590E
G 3115 SPV490     HW 490 KPV50 JFE-HITEN610
JFE-HITEN610U2
JFE-HITEN610E
690N/mm2 Class   A543 Cl. 1   HW 620   JFE-HITEN690M
780N/mm2 Class   A517
A543 Cl. 2		   HW 685   JFE-HITEN780M
980N/mm2 Class       HW 885   JFE-HITEN980

GRADES OF JFE-HITEN

Strength
(N/mm2) 		Designation Thickness
(mm) 		Yield Strength Min.
(N/mm2) 		Tensile Strength
(N/mm2) 		Ship's class
Standard *** 		JFE Standard
590 JFE-HITEN590
JFE-HITEN610
JFE-HITEN570U2
JFE-HITEN590U2
JFE-HITEN610U2
JFE-HITEN570E
JFE-HITEN590E
JFE-HITEN610E		 6 – 150
6 – 150
6 – 100
6 – 75
6 – 75
6 – 100
6 – 75
6 – 75		 450
490
450
450
490
450
450
490		 590 – 710
610 – 730
570 – 700
590 – 710
610 – 730
570 – 700
590 – 710
610 – 730		 For Bridges, Penstocks, Tanks, Offshore
structures
U2 : High Tensile Strength Steel Plates
with High Weldability
E : High Tensile Strength Steel Plates
with High Weldability
for High Heat Input Welding
JFE-HITEN590S
JFE-HITEN590SL		 6 – 40
6 – 50		 450
450		 590 – 710
590 – 710		 S : Without Heat treatment for Civil
Engineering and Industrial Machinery
SL : Same as above with excellent
toughness at low temperature (-40°C)
690 JFE-HITEN690
JFE-HITEN710		 6 – 100
6 – 100		 590
620		 690 – 820
710 – 840		 Ni-free type
for Tanks, Offshore Structures etc.
JFE-HITEN690M
JFE-HITEN710M		 6 – 100
6 – 100		 590
620		 690 – 820
710 – 840		 Ni type and Low carbon-equivalent
for Bridges, Penstocks, Tanks, etc.
JFE-HITEN690S 6 – 25 550 690 – 830 With reducing alloying elements and
without Heat Treatment, for Civil
Engineering and Industrial Machinery
780 JFE-HITEN780M 6 – 150 685 780 – 930 Ni type and Low Carbon-equivalent for
Bridges, Penstocks, Offshore structures etc.
JFE-HITEN780EX 6 – 60 685 780 – 930 High Performance with Relaxing
Pre-heating for Bridges
JFE-HITEN780S 5 – 160 685 780 – 930 Reducing alloying elements for Civil Engineering
and Industrial Machinery
JFE-HITEN780LE 5 – 160
160.1 – 203.2		 685
610		 780 – 930
700 – 850		 High Weldability and excellent toughness at low
temperature (-40°C), for Civil
Engineering and Industrial Machinery
980 JFE-HITEN980 6 – 120 885 950 – 1130 High Strength, High Weldability and Good
Toughness for Penstocks
JFE-HITEN980S 5 – 50.8 885 950 – 1130 For Civil Engineering and Industrial Machinery
JFE-HITEN980LE 5 – 50.8 900 980 – 1150 High tensile strength steel plate with excellent low
temperature toughness (-40°C) for Civil Machinery
and Industrial Machinery.
JFE–HYD960LE 5 – 50.8
50.9 – 63.5		 960
930		 980 – 1150
950 – 1120		 Higher yield strength than conventional 980 grade steel,
high weldability and excellent toughness at low temperature
(-40°C), for Civil Engineering and Industrial Machinery.
1180 JFE–HYD1100LE 12 – 32 1100 1180 – 1500 High tensile strength steel plate for Civil Machinery and
Industrial Machinery. Has high yield stress, and excellent
weldability and low temperature toughness (-40°C).

AVAILABLE SIZES

Without Heat Treatment

Width mm_
Thickness mm 		1000
_
1600 		1601
_
1800 		1801
_
2000 		2001
_
2200 		2401
_
2600 		2601
_
2800 		2801
_
3000 		3001
_
3200 		3201
_
3400 		3201
_
3400 		3401
_
3600 		3601
_
3800 		3801
_
4000 		4001
_
4200 		4201
_
4400 		4401
_
4600 		4601
_
4800 		4801
_
5000 		5001
_
5200 		5201
_
5300 		5301
_
5350
6.0 - 6.9       22 20 15 13
7.0 - 7.9 25 24 22 20 15
8.0 - 8.9     22 18 16 13 11
9.0 - 9.9     22 20 16 12
10.0 - 11.9   22 20 18 Negotiable Range
12.0 - 13.9   22
14.0 - 26.0
26.1 - 28.0
28.1 - 30.0 24 24 22
30.1 - 35.0 24 24 23 22 21 21 20
35.1 - 40.0 24 23 22 21 20 19 18 18 17
40.1 - 45.0 23 22 20 19 19 18 17 16 16 15
45.1 - 50.0 23 22 20
17 		19 18 17 17 16 15 15 14 14
11
50.1 - 60.0 24 24 22 20 19 18 16 15 14 14 13 13 12 11
60.1 - 70.0   23 20 24 22 20 19 17 16 15 14 14 13 12 12 11 11 10 10 10
70.1 - 80.0 22 20 18 21 19 18 16 15 14 13 13 12 11 11 10 10 9.7 9.3 8.9 8.7
80.1 - 90.0 20 18 16 19 17 16 14 13 13 12 11 10 10 9.8 9.4 8.9 8.5 8.3 7.9
90.1 - 100.0 18 16 14 17 15 14 13 12 11 10 10 9.8 9.3 8.8 8.4 8.0 7.7 7.3 7.0
67
5.5
100.1 - 110.0 16 14 13 15 14 13 12 11 10 9.9 9.4 8.8 8.4 8.0 7.6 7.3 6, y
6.0		 6.6
5.7
110.1 - 120.0 15 13 12 14 13 11 11 10 9.7 9.1 8.5 8.1 7.7 7.3 6.9
6.0		 6.6
5.7		 6.3
5.8		 5.2
120.1 - 130.0 13 12 11 13 11 11 10 9.5 8.9 8.3 7.9 7.3 7.0 6.7 6.4
5.5		 5.2 5.0
130.1 - 140.0 11 10 9.7 11 10 9.7 9.4 8.7 8.2 7.7 7.2 6.8 6.5
5.6		 5.3 4.8
140.1 - 150.0 10 10 9.6 10 9.7 9.4 8.7 8.1 7.6 7.1 6.7 6.4
5.5		 5.2 4.9


Heat Treated
Width mm_
Thickness mm 		1000
_
1600 		1601
_
1800		 1801
_
2000		 2001
_
2200		 2201
_
2400		 2401
_
2600		 2601
_
2800		 2801
_
3000		 3001
_
3200		 3201
_
3400		 3401
_
3600		 3601
_
3800		 3801
_
4000		 4001
_
4200		 4201
_
4400		 4401
_
4600		 4601
_
4800		 4801
_
5000		 5001
_
5200		 5201
_
5300		 5301
_
5350
6.0 - 6.9       22 20 15 13
7.0 - 7.9 25 24 22 20 15
8.0 - 8.9     22 18 16 13 11
9.0 - 9.9     22 20 16 12
10.0 - 11.9   22 20 18 Negotiable Range
12.0 - 13.9   22
14.0 - 26.0
26.1 - 28.0
28.1 - 30.0 24 24 22
30.1 - 35.0 24 24 23 22 21 21 20
35.1 - 40.0 24 23 22 21 20 19 18 18 17
40.1 - 45.0 23 22 20 19 19 18 17 16 16 15
45.1 - 50.0 23 22 20
17 		19 18 17 17 16 15 15 14 14
11
50.1 - 60.0 24 24 22 20 19 18 16 15 14 14 13 13 12 11
60.1 - 70.0   23 20 24 22 20 19 17 16 15 14 14 13 12 12 11 11 10 10 10
70.1 - 80.0 22 20 18 21 19 18 16 15 14 13 13 12 11 11 10 10 9.7 9.3 8.9 8.7
80.1 - 90.0 20 18 16 19 17 16 14 13 13 12 11 10 10 9.8 9.4 8.9 8.5 8.3 7.9
90.1 - 100.0 18 16 14 17 15 14 13 12 11 10 10 9.8 9.3 8.8 8.4 8.0 7.7 7.3 7.0
67
5.5
100.1 - 110.0 16 14 13 15 14 13 12 11 10 9.9 9.4 8.8 8.4 8.0 7.6 7.3 6, y
6.0		 6.6
5.7
110.1 - 120.0 15 13 12 14 13 11 11 10 9.7 9.1 8.5 8.1 7.7 7.3 6.9
6.0		 6.6
5.7		 6.3
5.8		 5.2
120.1 - 130.0 13 12 11 13 11 11 10 9.5 8.9 8.3 7.9 7.3 7.0 6.7 6.4
5.5		 5.2 5.0
130.1 - 140.0 11 10 9.7 11 10 9.7 9.4 8.7 8.2 7.7 7.2 6.8 6.5
5.6		 5.3 4.8
140.1 - 150.0 10 10 9.6 10 9.7 9.4 8.7 8.1 7.6 7.1 6.7 6.4
5.5		 5.2 4.9


JFE-HITEN STANDARDS

JFE-HITEN590 Series and JFE-HITEN690 Series
Designation
(Thickness mm)		 Heat
Treatment		 Chemical Composition (%)   Tensile Test＊1） Bending Test (180° ).2) Charpy Impact Test (2mmV) *3)
C Si Mn P S Cu Ni Cr Mo V Nb B Ceq   PCM Yield Strength (N/mm2) Tensile
Strength
(N/mm2) 		  Elongation
(%)		   Bending Radius (Test Specimen No.1) Test Temperature （℃） Absorbed Energy （J）
Thickness
(mm)		 Thickness
(mm)		 Thickness
(mm)		 Test
Specimen		 Thickness
(mm) 		Thickness (mm)
JFE-HITEN590
(6 - 150) 		QT ≤ 0.16 0.15/0.55 ≤ 1.50 ≤ 0.025 ≤ 0.015 ≤ 0.30 ≤ 1.00 ≤ 0.30 ≤ 0.30 ≤ 0.08 - - t ≤ 50
50< t ≤ 75
75< t 		≤ 0.44
≤ 0.46
≤ 0.48		 ≤ 0.26
≤ 0.28
≤ 0.28		 - ≥ 450 590/710 t ≤ 16
16< t ≤ 50
20< t		 ≥ 20
≥ 28
≥ 20		 No.5
No.5
No.4		 - 1.5t 12 - 10 ≥ 47
JFE-HITEN610
(6 - 150) 		QT ≤ 0.16 0.15/0.55 ≤ 1.50 ≤ 0.025 ≤ 0.015 ≤ 0.30 ≤ 1.00 ≤ 0.30 ≤ 0.30 ≤ 0.08 - - t ≤ 50
50< t ≤ 75
75< t		 ≤ 0.45
≤ 0.47
≤ 0.49		 ≤ 0.26
≤ 0.28
≤ 0.28		 t ≤ 75
75< t		 ≥ 490
≥ 470		 610/730 t ≤ 16
16< t ≤ 50
20< t		 ≥ 19
≥ 27
≥ 19		 No.5
No.5
No.4		 -; 1.5t 12 32 - 10
- 15		 ≥ 47
≥ 47
JFE-HITEN690
(6 - 100)		 QT ≤ 0.16 ≤ 0.35 ≤ 1.20 ≤ 0.025 ≤ 0.015 ≤ 0.40 ≤ 1.00 ≤ 0.70 ≤ 0.50 ≤ 0.08 - ≤ 0.005 t ≤ 50
50< t		 ≤ 0.54
≤ 0.58		 -
-		 t ≤ 75 75< t ≥ 590
≥ 570		 690/820 t ≤ 16
16< t ≤ 50
20< t		 ≥ 17
≥ 25
≥ 17		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t 		12 32 50 - 15
- 20
- 30		 ≥ 47
≥ 47
≥ 47
JFE-HITEN710
(6 - 100)		 QT ≤ 0.16 ≤ 0.35 ≤ 1.20 ≤ 0.025 ≤ 0.015 ≤ 0.40 ≤ 1.00 ≤ 0.70 ≤ 0.50 ≤ 0.08 - ≤ 0.005 t ≤ 50
50< t		 ≤ 0.55
≤ 0.59		 -
-		 t ≤ 75
75< t		 ≥ 620
≥ 600		 710/840 t ≤ 16
16< t ≤ 50
20< t		 ≥ 17
≥ 25
≥ 17		 No.5
No.5
No.4		 t ≤ 32
32< t 		1.5t .
20t		 12 32 50 -15
- 20
- 30		 ≥ 47
≥ 47
≥ 47
JFE-HITEN690M
(6 - 100)		 OT ≤ 0.14 ≤ 0.35 ≤ 1.20 ≤ 0.015 ≤ 0.015 ≤ 0.40 0.30/1.30 ≤ 0.70 ≤ 0.50 ≤ 0.05 - ≤ 0.005 t ≤ 50
50< t 		≤ 0.53
≤ 0.57		 -
-		 t ≤ 75
75< t		 ≥ 590
≥ 570		 690/820 t ≤ 16
16< t ≤ 50
20< t		 ≥ 17
≥ 25
≥ 17		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t .
20t		 12 32 50 - 15
- 20
- 30		 ≥ 47
≥ 47
≥ 47
JFE-HITEN710M
(6 - 100)		 QT ≤ 0.14 ≤ 0.35 ≤ 1.20 ≤ 0.015 ≤ 0.015 ≤ 0.40 0.30/1.30 ≤ 0.70 ≤ 0.50 ≤ 0.05 - ≤ 0.005 t ≤ 50
50< t		 ≤ 0.53
≤ 0.57		 -
-		 t ≤ 75
75< t		 ≥ 620
≥ 600		 710/840 t ≤ 16
16< t ≤ 50
20< t		 ≥ 17
≥ 25
≥ 17		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t .
20t		 12 32 50 - 15
- 20
- 30		 ≥ 47
≥ 47
≥ 47


JFE-HITEN780 Series and JFE-HITEN980
Designation
(Thickness mm)		 Heat
Treatment		 Chemical Composition (%)   Tensile Test＊1） Bending Test (180° ).2) Charpy Impact Test (2mmV) *3)
Thickness
(mm)		 C Si Mn P S Cu Ni Cr Mo V Nb B Ceq   PCM Yield Strength (N/mm2) Tensile
Strength
(N/mm2) 		  Elongation
(%)		   Bending Radius (Test Specimen No.1) Test Temperature （℃） Absorbed Energy （J）
Thickness
(mm)		 Thickness
(mm)		 Thickness
(mm)		 Test
Specimen		 Thickness
(mm) 		Thickness (mm)
JFE-HITEN780M
(6-150) 		QT ｔ≤ 100
100 		≤ 0.14
≤ 0.18		 ≤ 0.35
≤ 0.35		 ≤ 1.20
≤ 1.20		 ≤ 0.015
≤ 0.015		 ≤ 0.015
≤ 0.015		 ≤ 0.50
≤ 0.50		 0.30/1.50
0.30/1.50		 ≤ 0.70
≤ 0.80		 ≤ 0.60
≤ 0.60		 ≤ 0.05
≤ 0.05		 -
-		 ≤ 0.005
≤ 0.005		 t ≤ 50
50 < t ≤ 100
100< t		 ≤ 0.53
≤ 0.57
≤ 0.62		 ≤ 0.30
≤ 0.32
̶		 t ≤ 75
75< t 		≥ 685
≥ 665		 780/930 t< 16
16< t <
50 20< t 		> 16
≥ 24
≥ 16 		No.5
No.5
No.4		 t < 32 32< t 1.5t
2.0t		 12<t < 32 32<t < 50 50<t -20
- 25
- 35		 ≥ 47
≥ 47
≥ 47
JFE-HITEN980
(6 - 120)		 OT - ≤ 0.14 ≤ 0.35 ≤ 1.20 ≤ 0.010 ≤ 0.005 ≤ 0.70 ≤ 4.00 ≤ 0.80 ≤ 0.80 ≤ 0.15 ≤ 0.02 ≤ 0.005 t ≤ 50
50< t ≤ 100
100< t		 ≤ 0.59
≤ 0.62
≤ 0.71		 ≤ 0.29
≤ 0.33
≤ 0.36		 t ≤ 75
75< t ≤ 100
100< t		 ≥ 885
≥ 865
≥ 865		 950/1130
950/1130
930/1110		 t ≤ 16
16< t ≤ 50
20< t 		≥ 12
≥ 19
≥ 12 		No.5
No.5
No.4		 t ≤ 32
32< t		 2.0t
2.5t		 12 - 60 ≥ 47


High Tensile Strength Steel Plates with Good Weldability
Designation
(Thickness mm)		 Heat
Treatment		 Chemical Composition (%)   Tensile Test＊1） Bending Test (180° ).2) Charpy Impact Test (2mmV) *3)
C Si Mn P S Cu Ni Cr Mo V Nb B Ceq   PCM Yield Strength (N/mm2) Tensile
Strength
(N/mm2) 		  Elongation
(%)		   Bending Radius (Test Specimen No.1) Test Temperature （℃） Absorbed Energy （J）
Thickness
(mm)		 Thickness
(mm)		 Thickness
(mm)		 Test
Specimen		 Thickness
(mm) 		Thickness (mm)
JFE - HITEN570U2
（6 – 100）		 QT ≤ 0.09 0.15/0.55 ≤ 1.60 ≤ 0.025 ≤ 0.010 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.06 ≤ 0.03 - - - ≤ 0.20 t ≤ 16
16< t ≤ 40
40< t ≤ 75
75< t		 ≥ 460
≥ 450
≥ 430
≥ 420		 570/700 t ≤ 16
16< t ≤ 50
20< t		 ≥ 20
≥ 28
≥ 20		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t		 12< t － 5 ≥ 47
JFE - HITEN590E
（6 – 75）		 QT ≤ 0.09 0.15/0.55 1.00/1.60 ≤ 0.020 ≤ 0.010 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.06 ≤ 0.03 - - - ≤ 0.20 - ≥ 450 590/710 t ≤ 16
16< t ≤ 50
20< t		 ≥ 20
≥ 28
≥ 20		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t		 6≤ t ≤ 20
20< t ≤ 32
32< t ≤ 50
50< t		 5
－ 5
－ 10
－ 20		 ≥ 47 **
≥ 47
≥ 47
≥ 47
JFE - HITEN610E （6 – 75） QT ≤ 0.09 0.15/0.55 1.20/1.60 ≤ 0.025 ≤ 0.010 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.06 ≤ 0.03 - - - ≤ 0.20 － ≥ 490 610/730 t ≤ 16
16< t ≤ 50
20< t		 ≥ 19
≥ 27
≥ 19		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t 		6≤ t ≤ 20
20< t ≤ 32
32< t ≤ 50
50< t		 0
－ 5
－ 15
－ 25		 ≥ 47 **
≥ 47
≥ 47
≥ 47
JFE - HITEN780EX
（6 – 60）		 QT ≤ 0.09 ≤ 0.55 0.60/1.50 ≤ 0.015 ≤ 0.010 ≤ 0.50 0.30/1.50 ≤ 0.80 ≤ 0.60 ≤ 0.05 ≤ 0.03 ≤ 0.005 t ≤ 34
34< t ≤ 60		 ≤ 0.53 *
≤ 0.57 *		 ≤ 0.23
≤ 0.25		 t ≤ 50
50< t ≤ 60		 ≥ 685
≥ 665		 780/930
760/910		 t ≤ 16
16< t ≤ 50
20< t		 ≥ 16
≥ 24
≥ 16		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t 		12< t ≤ 32
32< t ≤ 60		 － 20
－ 25		 ≥ 47
≥ 47


High Tensile Strength Steel Plates for High Heat-input Welding
Designation
(Thickness mm)		 Heat
Treatment		 Chemical Composition (%) Tensile Test＊1） Bending Test (180° ).2) Charpy Impact Test (2mmV) *3)
C Si Mn P S Cu Ni Cr Mo V Nb B PCM Yield Strength (N/mm2) Tensile
Strength
(N/mm2) 		  Elongation
(%)		   Bending Radius (Test Specimen No.1) Test Temperature （℃） Absorbed Energy （J）
Thickness
(mm)		 Thickness
(mm)		 Thickness
(mm)		 Test
Specimen		 Thickness
(mm)
JFE - HITEN570E （6 – 100） QT ≤ 0.09 0.15/0.55 ≤ 1.60 ≤ 0.020 ≤ 0.010 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.06 ≤ 0.03 - ≤ 0.20 t ≤ 16
16< t ≤ 40
40< t ≤ 75
75< t		 ≥ 460
≥ 450
≥ 430
≥ 420		 570/700 t ≤ 16
16< t ≤ 50
20< t		 ≥ 20
≥ 28
≥ 20		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t		 12< t － 5 ≥ 47
JFE - HITEN590E （6 – 75） QT ≤ 0.09 0.15/0.55 1.00/1.60 ≤ 0.020 ≤ 0.010 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.06 ≤ 0.03 - ≤ 0.20 - ≥ 450 590/710 t ≤ 16
16< t ≤ 50
20< t		 ≥ 20
≥ 28
≥ 20		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t		 6≤ t ≤ 20
20< t ≤ 32
32< t ≤ 50
50< t		 5
－ 5
－ 10
－ 20		 ≥ 47**
≥ 47
≥ 47
≥ 47
JFE - HITEN610E （6 – 75） QT ≤ 0.09 0.15/0.55 1.00/1.60 ≤ 0.020 ≤ 0.010 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.30 ≤ 0.06 ≤ 0.03 - ≤ 0.20 - ≥ 490 610/730 t ≤ 16
16< t ≤ 50
20< t		 ≥ 19
≥ 27
≥ 19		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t		 6≤ t ≤ 20
20< t ≤ 32
32< t ≤ 50
50< t		 0
－ 5
－ 15
－ 25		 ≥ 47**
≥ 47
≥ 47
≥ 47


High Tensile Strength Steel Plates for Civil Engineering and Industrial Machinery
Designation
(Thickness mm)		 Heat
Treatment		 Chemical Composition (%) Tensile Test＊1） Bending Test (180° ).2) Charpy Impact Test (2mmV) *3)
Thickness
(mm)		 C Si Mn P S Cu Ni Cr Mo V Nb B Ceq PCM Yield Strength (N/mm2) Tensile
Strength
(N/mm2) 		  Elongation
(%)		   Bending Radius (Test Specimen No.1) Test Temperature （℃） Absorbed Energy （J）
Thickness
(mm)		 Thickness
(mm)		 Thickness
(mm)		 Test
Specimen		 Thickness
(mm)
JFE - HITEN590SA (6 – 40) CR or TMCP - ≤ 0.18 ≤ 0.55 ≤ 2.00 ≤ 0.030 ≤ 0.020 Other elements are added as required. ≤ 0.45 - - ≥ 450 590/710 t ≤ 16
16< t ≤ 50
20< t		 ≥ 20
≥ 28
≥ 20		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t		 - - -
JFE - HITEN590SB (6 – 40) - ≤ 0.18 ≤ 0.55 ≤ 2.00 ≤ 0.030 ≤ 0.015 Other elements are added as required. ≤ 0.45 - 12< t - 10 ≥ 47
JFE - HITEN590SL（6 – 50） CR or TMCP - ≤ 0.16 0.20/0.55 0.80/1.60 ≤ 0.030 ≤ 0.015 - - - ≤ 0.35 ≤ 0.08 ≤ 0.05 - ≤ 0.46 ≤ 0.22 t ≤ 32 32< t ≥ 450
≥ 430		 590/710
570/705		 t ≤ 16
16< t ≤ 20
20< t		 ≥ 20
≥ 26
≥ 20		 No.5
No.5
No.4		 - 1.5t 6 ≤ t ≤ 36
36< t		 - 40
- 20		 ≥ 27 **
≥ 27
JFE - HITEN690S（6 – 25） CR or TMCP - ≤ 0.15 ≤ 0.55 ≤ 2.00 ≤ 0.030 ≤ 0.015 Other elements such as Nb, V and Ti are added as required. ≤ 0.50 - - ≥ 550 690/830 t ≤ 16
16< t		 ≥ 17
≥ 25		 No.5
No.5		 - 1.5t 12< t - 10 ≥ 47
JFE - HITEN780S （5 – 160） QT t ≤ 50 ≤ 0.25 ≤ 0.55 ≤ 1.60 ≤ 0.030 ≤ 0.015 - - ≤ 0.70 ≤ 0.30 ≤ 0.10 Ti:0.005/0.02 ≤ 0.005 ≤ 0.53 - t ≤ 75
75< t ≤ 160		 ≥ 685
≥ 665		 780/930
780/930		 t ≤ 16
16< t ≤ 32
20< t		 ≥ 16
≥ 24
≥ 16		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t		 5≤ t ≤ 12
12< t ≤ 20
20< t ≤ 32
32< t ≤ 160		 -
- 5
- 15
- 20		 -
≥ 35
≥ 35
≥ 35
50< t ≤ 100 ≤ 0.20 ≤ 0.50 ≤ 0.50 ≤ 1.50 ≤ 0.60 Ti:0.005/0.02 ≤ 0.61
100< t ≤ 160 ≤ 0.18 ≤ 0.50 ≤ 0.50 ≤ 1.50 ≤ 0.60 Ti: ≤ 0.03 ≤ 0.70
JFE - HITEN780LE（5 – 203.2） QT or TMCP t ≤ 19
19< t ≤ 32
32< t ≤ 50
50< t ≤ 70
70< t ≤ 160
160< t ≤ 203.2		 ≤ 0.20 ≤ 0.40 ≤ 1.40 ≤ 0.025 ≤ 0.015 - - ≤ 0.20 ≤ 0.15 ≤ 0.08 ≤ 0.03 ≤ 0.005 ≤ 0.40* - - ≥ 685 780/930 t ≤ 16
16< t ≤ 40
20< t		 ≥ 16
≥ 24
≥ 16		 No.5
No.5
No.4		 t ≤ 32
32< t		 1.5t
2.0t		 5≤ t < 6
6≤ t < 12
12≤ t ≤ 160
160< t ≤ 203.2		 —
- 40
- 40
- 40		 —
≥ 40 ***
≥ 40
≥ 35
≤ 0.43*
≤ 0.80 ≤ 0.40 ≤ 0.53*
≤ 0.65*
≤ 0.18 ≤ 1.50 ≤ 0.80 ≤ 0.10 ≤ 0.73*
≤ 0.18 ≤ 0.55 ≤ 1.60 ≤ 0.60 ≤ 0.75 ≤ 1.50 ≤ 0.80 ≤ 0.10 Ti: ≤ 0.03 ≤ 0.78* 160< t ≤ 203.2 ≥ 610 700/850
JFE - HITEN980S（5 – 50.8） QT - ≤ 0.18 ≤ 0.35 ≤ 1.20 ≤ 0.020 ≤ 0.020 ≤ 0.70 ≤ 2.00 ≤ 0.80 ≤ 0.80 ≤ 0.08 ≤ 0.02 ≤ 0.005 ≤ 0.65 - - ≥ 885 950/1130 t ≤ 16
16< t ≤ 50.8
20< t		 ≥ 12
≥ 19
≥ 12		 No.5
No.5
No.4		 t ≤ 32
32< t		 2.0t
2.5t		 5≤ t ≤ 12
12< t ≤ 20
20< t ≤ 32
32< t		 —
- 10
- 25
- 30		 —
≥ 35
≥ 35
≥ 35
JFE - HITEN980LE （5 – 50.8） QT t ≤ 32 32< t ≤ 50.8 ≤ 0.18 ≤ 0.40 ≤ 1.40 ≤ 0.020 ≤ 0.015 - - ≤ 0.80
≤ 1.50		 ≤ 0.60
≤ 0.80		 ≤ 0.10 ≤ 0.03 ≤ 0.005 ≤ 0.58*
≤ 0.65*		 - - ≥ 900 980/1150 t ≤ 16
16< t ≤ 50.8
20< t		 ≥ 12
≥ 19
≥ 12		 No.5
No.5
No.4		 t ≤ 32
32< 		2.0t 2.5t 5≤ t < 6
6≤ t < 12
12≤ t < 50.8		 —
- 40
- 40		 —
≥ 40 ***
≥ 40
JFE – HYD960LE （5 – 63.5） QT or TMCP t ≤ 32 ≤ 0.18 ≤ 0.70 ≤ 1.70 ≤ 0.020 ≤ 0.010 - - ≤ 1.00 ≤ 0.60 ≤ 0.08 - ≤ 0.004 ≤ 0.64* - t ≤ 50.8 ≥ 960 980/1150 t ≤ 40
40< t		 ≥ 12 No.5
No.4		 - 3.0t 5≤ t < 6
6≤ t ≤ 63.5		 —
- 40		 —
≥ 27****
32< t ≤ 50.8 ≤ 0.20 ≤ 0.90 ≤ 0.70*
50.8< t ≤ 63.5 50.8< t ≤ 63.5 ≥ 930 950/1120
JFE – HYD1100LE （12 – 32） TMCP - ≤ 0.20 ≤ 0.70 ≤ 1.70 ≤ 0.020 ≤ 0.010 - - — ≤ 1.00 ≤ 0.90 ≤ 0.08 - ≤ 0.004 ≤ 0.70* - - ≥ 1100 1180/1500 - ≥ 12 No.5 - 4.0t - - 40 ≥ 27


Dimensional Tolerance, Shape, and Appearance
Designation Dimensional Tolerance, Shape, and Appearance
590, 590U2, 590E 610, 610U2, 610E 690, 690M, 710, 710M 780M
980		 Dimensional tolerances of thickness, width, and length, flatness, and shape are in accordance with JIS G 3115.
570U2, 570E 590S, 590SL 690S
780S, 780LE, 780EX
980S, 980LE, HYD960LE, HYD1100LE		 Dimensional tolerances of thickness, width, and length, flatness, and shape are in accordance with JIS G 3193.

TYPICAL PROPERTIES OF JFE-HITEN

JFE-HITEN 610U2 ─ 590N/mm2 Class High Tensile Strength Steel Plates with good Weldability
Chemical composition
Designation Th ic
(mmkne)ss 		C Si Mn P S Pcm
JFE-HITEN610U2 75 0.08 0.26 1 44 0.005 0.002 0.18
Conventional 590N/mm2g rade 50 0.13 0.26 1.29 0.011 0.003 0.23

Mechanical properties of plate
Designation Tensile test Charpy impact test
YS
(N/mm2) 		TS
(N/mm2) 		El*
(%)		 Temp.
(t)		 Dir. Absorbed energy
(J)
JFE-HITEN610U2 534 624 31* - 10 L 275
Conventional 590N/mm2g rade 566 668 50 - 10 L 269

JFE-HITEN 610E ─ 590N/mm2 Class High Tensile Strength Steel Plates for High Heat-input Welding

Chemical composition
Designation Th ic
(mmkne)ss 		C Si Mn P S Pcm
JFE-HITEN610E 25 0.08 0.20 1.33 0.008 0.003 0.17
Mechanical properties of electro-gas arc welded joint
Welding condition Tensile strength
of welded joint
(N/mm2) 		Charpy impact test
Groove configuration Welding material Heat input
(kJ/mm) 		Test location Test temp.
(°C) 		Absorbed energy
(J)
DWS–1LG 120 617
618		 Weld metal 0 113
- 25 82
Fusion line 0 244
- 25 171
Center of HAZ 0 271
- 25 171

JFE-HITEN 780EX ─ 780N/mm2 Class High Tensile Strength Steel Plates with High Weldability

Chemical composition
Designation Thickness (mm) C Si Mn P S Pcm
JFE-HITEN780EX 34 0.08 0.20 1.05 0.004 0.001 0.22

Mechanical properties of plate
Tensile test Charpy impact test
YS TS El* Temp. Dir. Absorbed energy
(N/mm2) (N/mm2) (%) (°C)   (J)
769 844 24 - 40 L 286

JFE-HITEN 980 ─ 980N/mm2 Class High Tensile Strength Steel Plates with High Weldability

Chemical composition
Thickness (mm) C Si Mn P S Pcm
75 0.09 0.25 1.14 0.005 0.001 0.27

Mechanical properties of plate
Tensile test（1/4 t） Charpy impact test（1/4 t）
YS TS El* Temp. Dir. Absorbed energy
(N/mm2) (N/mm2) (%) (°C)   (J)
930 977 25 0 C 208
- 60 C 158
Mechanical properties of submerged arc welded joint
Welding condition Tensile strength
of welded joint
(N/mm2) 		Charpy impact test
Groove configuration Welding material Heat input
(kJ/mm) 		Test location Test temp.
(t) 		Absorbed energy
(J)
PFH-100J/US
-100J		 45 977
981		 Weld metal - 10 109
Fusion line 136
Center of HAZ 248
Go Back Top
