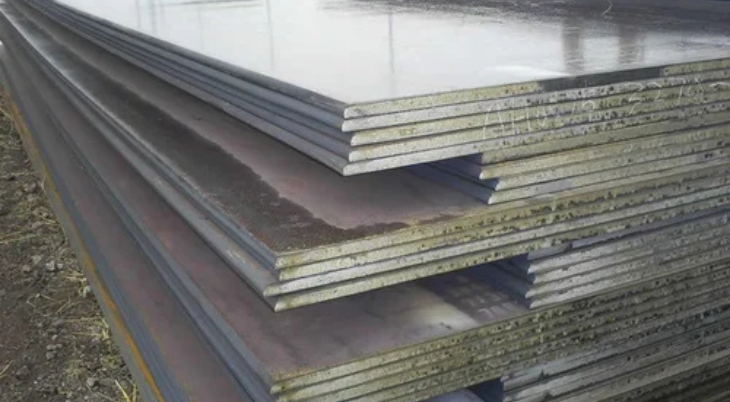

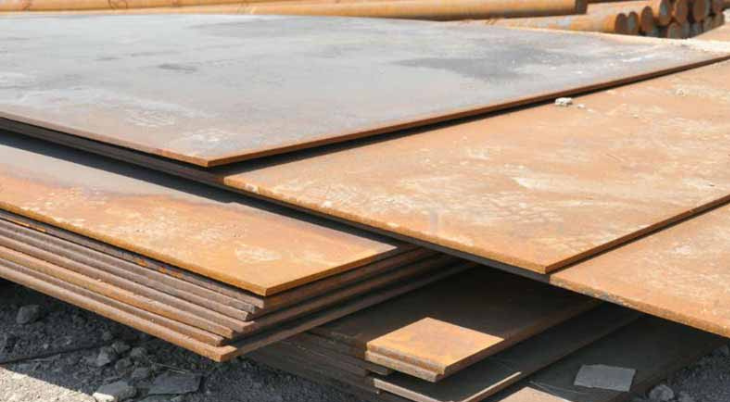

Choudhary Metal offers premium quality Hadfield Manganese Steel Plates, widely recognized for their excellent work-hardening properties. These plates are highly suitable for high-impact wear applications and environments where scratch abrasion is frequently encountered.
The hardened surface of Hadfield Manganese Steel Plates can achieve almost five times the hardness of mild steel and nearly three times the hardness of annealed stainless steel. This exceptional hardness and toughness make them ideal for demanding industrial applications.
By using Hadfield Manganese Steel Plates from Choudhary Metal, industries can benefit from longer service life, improved durability, and enhanced protection for their equipment and infrastructure, especially in sectors such as mining, quarrying, construction, and material handling.
| EURONORM | 1.3401 | DIN | W1.3401 |
| AFNOR | X120Mn13 | ASTM | A128 Gr B2 |
| C | Si | Mn | Mn | P |
| 1.13 | 0.40 | 13 | 0.003 | ≤ 0.20 |
| Hardness HB | Yield Strength MPa | UTS MPa | El% | KCV 20�C (68�F) - J | |
| Typical Values | 220 | 380(55 KSI) | 940(136 KSI) | 40 | ≥ 112 J(≥ 83 ft.lbs) |
| Guaranteed Values* | 180/245 | 350(51 KSI) | 800(116 KSI) | 30 | 64 J(47 ft.lbs) |
| Density * | Expansion Coeff. 0-600�C | Specific Heat | Electrical * Resistivity | Thermal * Conductivity | Magnetic * Permeability | |
| Metric US | 7.88 | 10 -6�C1 21.5 10 -60�F-1 19.9 |
J/Metric Kg. �C 502 BTU/lb�F .12 |
�O.m 75 �O.m 75 |
W/m. �C 13 BTU/hr.ft�F 7.3 |
�1.002 |
