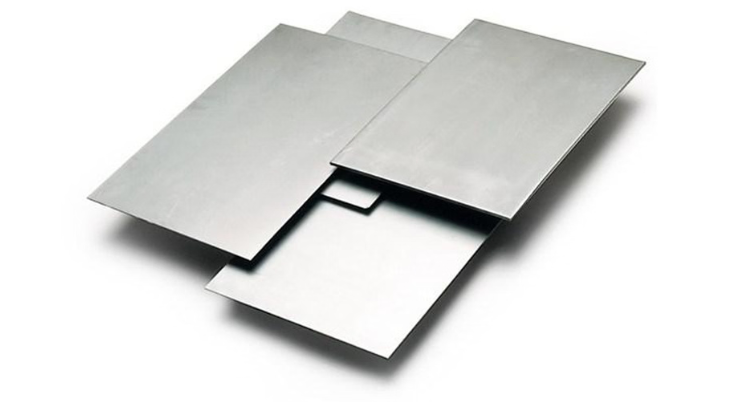

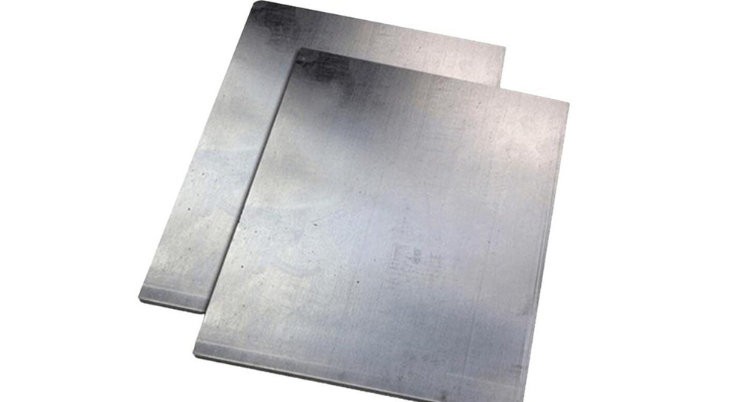

Choudhary Metal is a reliable stockist and supplier of Alloy 825 Plates, also known as Nickel Alloy 825 Plates. We supply these plates in thicknesses ranging from .1875" (4.8mm) to 2.00" (50.8mm), suitable for various corrosion-resistant industrial applications.
Alloy 825 is a high-performance nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium, providing excellent resistance to corrosion, oxidation, and acidic environments. Due to these properties, it performs reliably in harsh and chemically aggressive conditions.
Our Alloy 825 Plates are widely used in industries such as air pollution control, chemical and petrochemical processing, food processing, nuclear power, offshore oil and gas production, ore processing, petroleum refining, metal pickling, and waste disposal systems.
At Choudhary Metal, we ensure that our Alloy 825 Nickel Alloy Plates are manufactured and supplied in accordance with international quality standards, offering excellent durability, precision dimensions, and reliable performance for demanding industrial applications.
| 3/16" | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" |
| 4.8mm | 6.3mm | 9.5mm | 12.7mm | 15.9mm | 19mm |
| 1" | 1 1/4" | 1 1/2" | 1 3/4" | 2" | |
| 25.4mm | 31.8mm | 38.1mm | 44.5mm | 50.8mm |
| Nickel | 38.0 min.–46.0 max. | Iron | 22.0 min. |
| Chromium | 19.5 min.–23.5 max. | Molybdenum | 2.5 min.–3.5 max. |
| Molybdenum | 8.0 min.-10.0 max. | Copper | 1.5 min.–3.0 max. |
| Titanium | 0.6 min.–1.2 max. | Carbon | 0.05 max. |
| Niobium (plus Tantalum) | 3.15 min.-4.15 max. | Titanium | 0.40 |
| Carbon | 0.10 | Manganese | 1.00 max. |
| Sulfur | 0.03 max. | Silicon | 0.5 max. |
| Aluminium | 0.2 max. |
| Yield Strength 0.2% Offset |
Ultimate Tensile Strength |
Elongation in 2 in. |
Hardness | ||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | Rockwell B |
| 49,000 | 338 | 96,000 | 662 | 45 | 135-165 |
| Temperature, °F | 70 | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 |
|---|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength, ksi | 144 | 134 | 132 | 132 | 130 | 119 | 78 | 40 |
| 0.2% Yield Strength, ksi | 84 | 66 | 63 | 61 | 61 | 60 | 59 | 39 |
| Elongation, % | 44 | 45 | 42.5 | 45 | 48 | 34 | 59 | 117 |
| Temperature, °F | 1200 | 1300 | 1400 |
|---|---|---|---|
| 100 Hours, ksi | 59 | 34 | 18 |
| 1,000 Hours, ksi | 43 | 23 | 12 |
INCONEL and INCOLOY are registered trademarks of Special Metals (PCC)
